IP 2X Flexible Test Finger

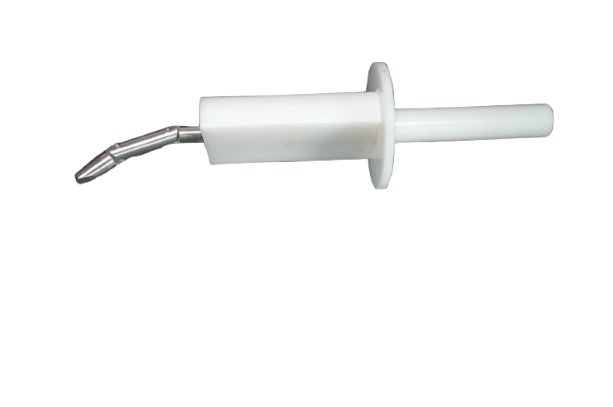

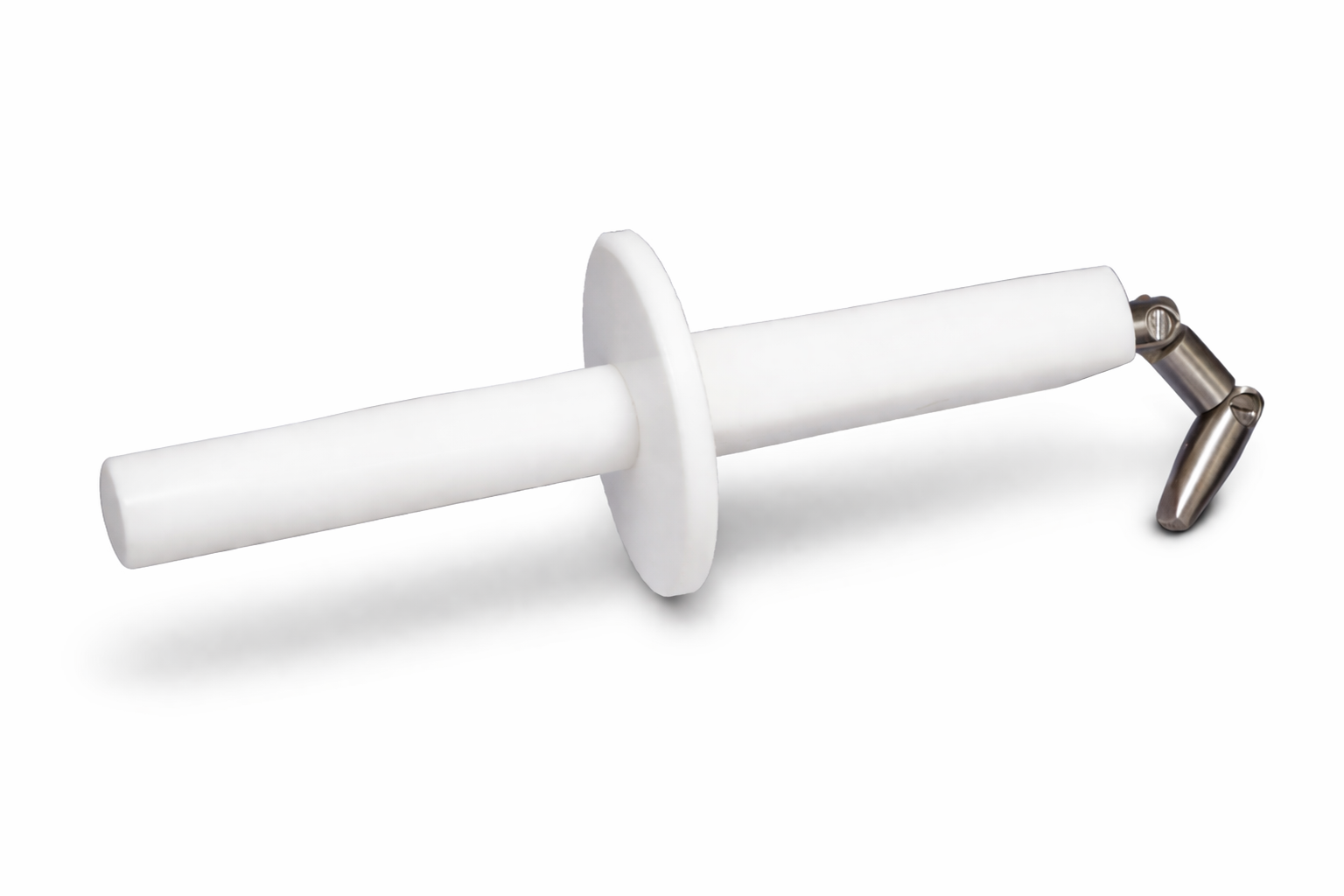

The IP 2X Probe (Flexible Test Finger) (Test Probe B) is a jointed precision instrument designed to simulate a human finger for electrical safety testing.
The CKINSTO-IP2XTF-01 is used to verify protection against access to hazardous live or mechanical parts and to evaluate the IP2X degree of protection.
Featuring a flexible, triple-jointed knurled finger, the probe provides realistic reach testing for finger-safe design verification.
The probe incorporates a 12 mm diameter and 80 mm long knurled finger, along with defined baffle and guard plate dimensions for the specified testing application.
Availability: In Stock
Watch Product Video
Download E-Book
The CKINSTO-IP2XTF-01 (Test Probe B) is a flexible test finger designed to simulate a human finger during protection testing. It is intended to verify whether hazardous live or mechanical parts can be accessed.
The probe features a 12 mm diameter and 80 mm long knurled finger with a flexible, triple-jointed design for realistic reach testing.
Its defined baffle plate and guard plate configuration supports the specified IP2X testing application for electrical products.
Product Name: IP 2X Probe (Flexible Test Finger) (Test Probe B)
Model: CKINSTO-IP2XTF-01
Brand: CK INSTO
Knurled Finger Diameter: 12 mm
Knurled Finger Length: 80 mm
Baffle Plate Diameter: 50 mm
Baffle Plate Length: 100 mm
Baffle Thickness: 20 mm
Guard Plate Diameter: 75 mm
Guard Plate Thickness: 5 mm
Design: Flexible, triple-jointed knurled finger
Material: Premium construction
Application: IP2X protection and finger-safe design verification
Model: CKINSTO-IP2XTF-01
Brand: CK INSTO
Knurled Finger Diameter: 12 mm
Knurled Finger Length: 80 mm
Baffle Plate Diameter: 50 mm
Baffle Plate Length: 100 mm
Baffle Thickness: 20 mm
Guard Plate Diameter: 75 mm
Guard Plate Thickness: 5 mm
Design: Flexible, triple-jointed knurled finger
Material: Premium construction
Application: IP2X protection and finger-safe design verification
Flexible Triple-Jointed Design
The probe features a flexible, triple-jointed knurled finger designed to provide realistic reach testing.
Human Finger Simulation
Designed to simulate a human finger for evaluating access to hazardous live or mechanical parts.
IP2X Protection Testing
Used to verify the IP2X degree of protection and finger-safe design of electrical products.
Defined Finger Dimensions
The knurled finger measures 12 mm in diameter and 80 mm in length.
Baffle & Guard Plate Configuration
Includes a 50 mm diameter × 100 mm length baffle plate, 20 mm baffle thickness, and a 75 mm diameter × 5 mm thick guard plate.
Premium Construction
Premium construction designed for repetitive laboratory use.
Applicable Standards
The supplied content specifies the probe for the following standards:
- IS/IEC 60529
- IEC 61032
- IEC 60950
- IEC 60045
- IEC 60884
- IEC 60745
- IEC 60335
VARIANTS & CUSTOMIZATION
Application Note
VARIANTS & CUSTOMIZATION
Application Note
The CKINSTO-IP2XTF-01 IP 2X Flexible Test Finger is used to verify protection against access to hazardous live or mechanical parts in electrical products. Its flexible, triple-jointed design simulates a human finger for realistic reach testing.
The probe is suitable for IP2X protection and finger-safe design verification, with a defined finger, baffle plate, and guard plate configuration for the specified testing application.
