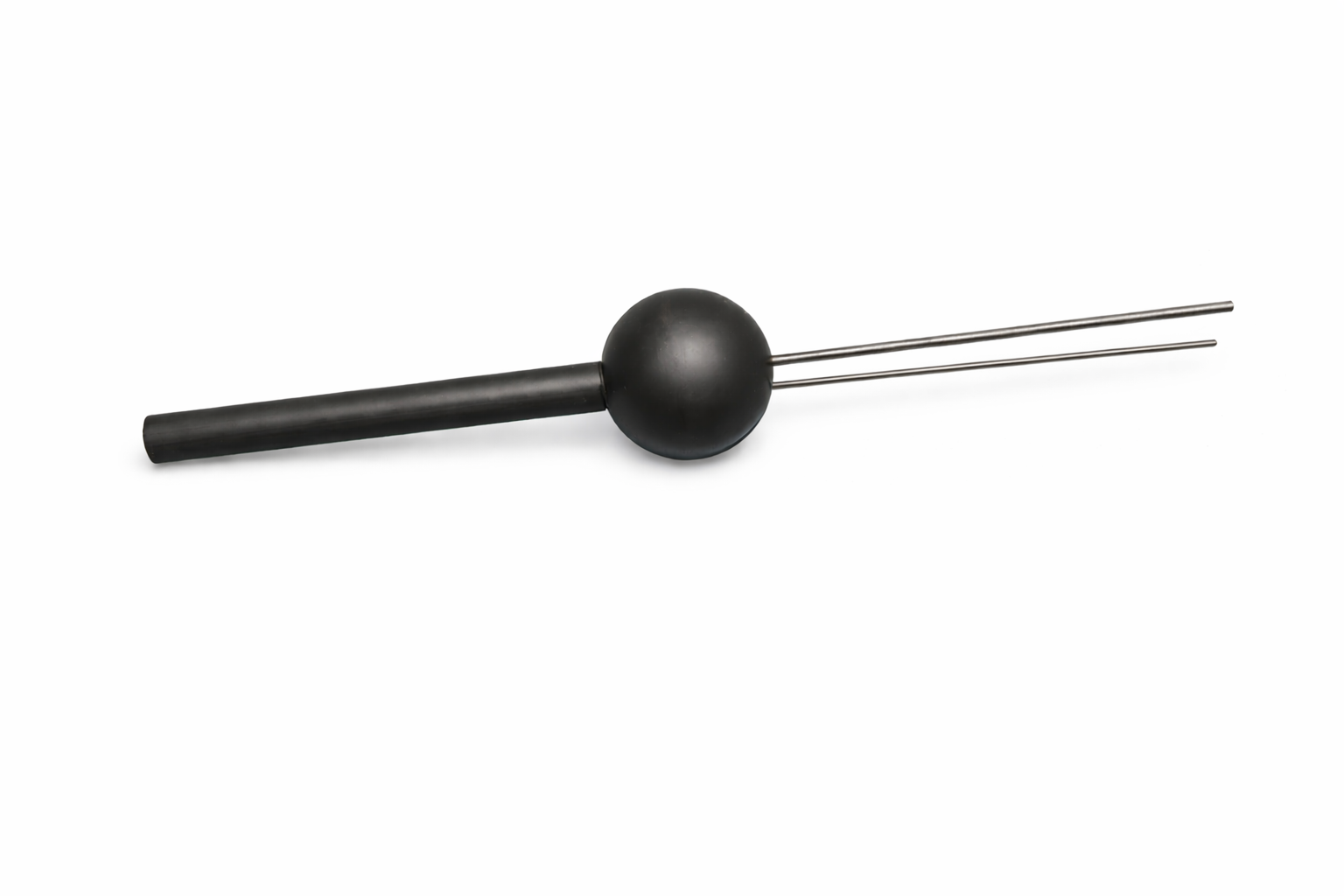

The CKINSTO-IP3X-01 IP3X Test Probe (Test Probe C) is designed to verify the IP3X degree of protection against access to hazardous parts and the ingress of solid foreign objects.

The probe incorporates a 2.5 mm diameter × 100 mm long test rod, a 35 mm diameter sphere, and a 100 mm × 10 mm handle configuration.

It is intended for safety testing applications involving industrial control panels, appliances, and electrical enclosures, with a high-durability stainless steel rod and professional-grade handle.

2.5 mm Test Rod

Features a 2.5 mm diameter test rod designed for IP3X protection verification and evaluation of access through enclosure openings.

Defined Test Rod Length

The test rod has a 100 mm length for the specified testing configuration.

35 mm Sphere

Includes a 35 mm diameter sphere as part of the probe configuration.

Professional-Grade Handle

The probe features a 100 mm long and 10 mm diameter handle for the specified testing application.

High-Durability Construction

Constructed with a high-durability stainless steel rod and professional-grade handle for testing applications.

Wide Testing Applications

Suitable for safety testing of industrial control panels, appliances, and electrical enclosures.

Applicable Standards

The supplied content specifies the probe according to:

• IS/IEC 60529
• IEC 61032
• EN 60529
