IP Probe Kit

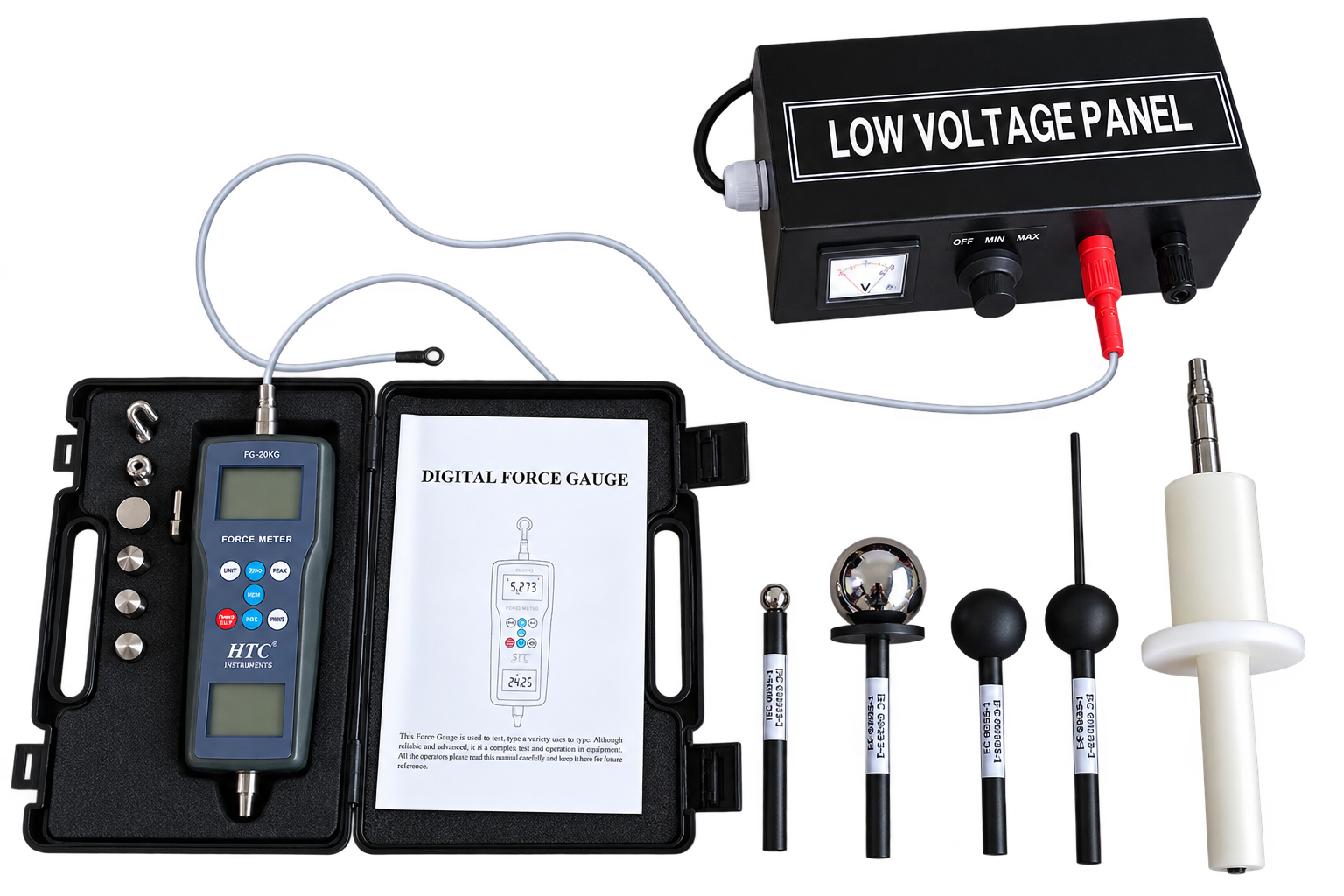

ip-probe-kit-ck-insto (1)

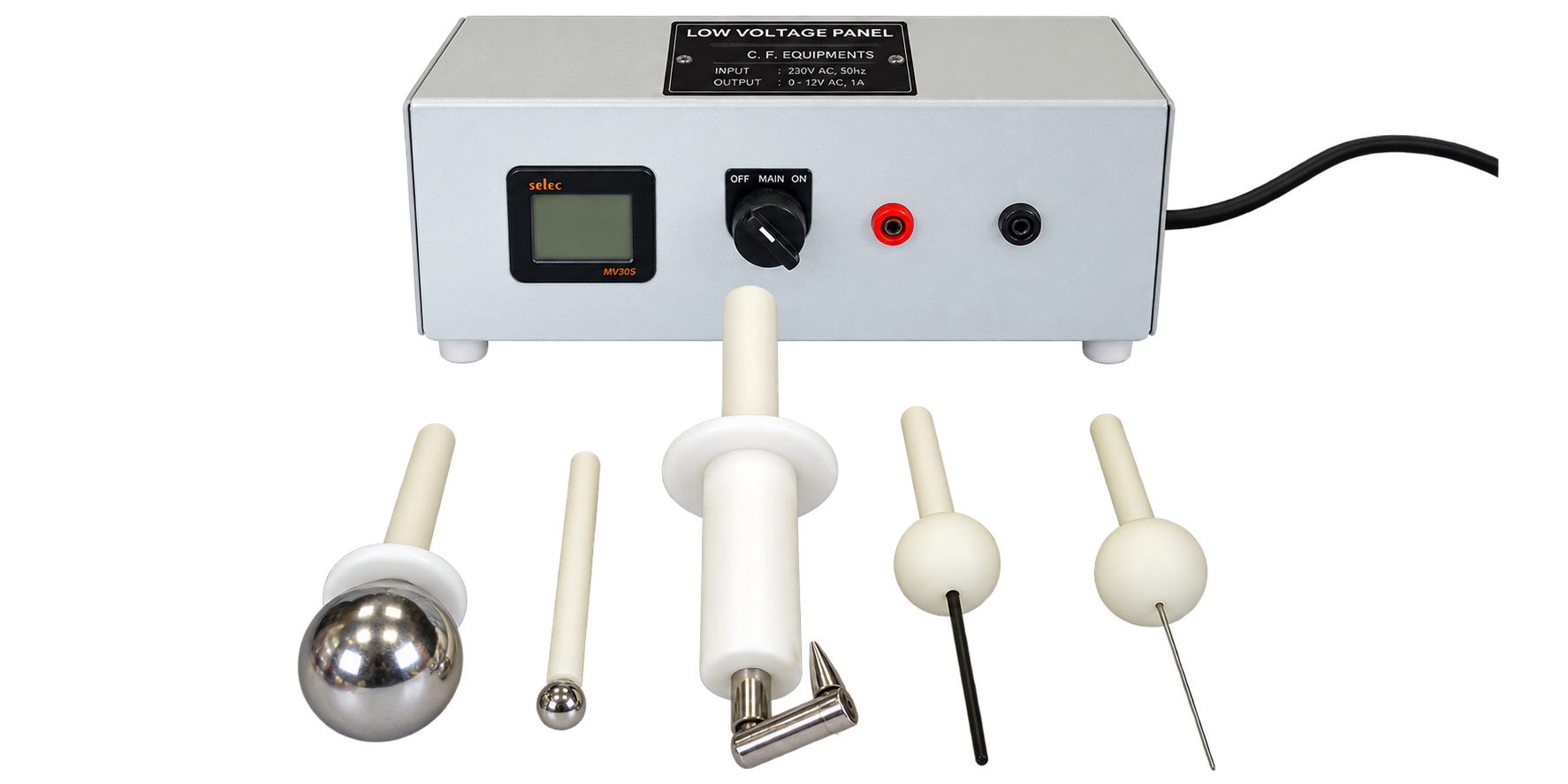

ip-probe-kit-ck-insto (2)
Get Latest Price

The CK INSTO IP Test Probes & Accessories Kit is a comprehensive collection of testing probes and accessories designed for IP protection and electrical safety testing applications.

The kit includes IP1X, IP2X, IP3X, and IP4X probes, covering different protection verification requirements with defined probe dimensions and configurations.

It also includes an IP2X Rigid Sphere Probe with a 12.5 mm sphere, providing an additional probe option for specified testing applications.

Along with the test probes, the kit can include a Low Voltage Panel with 0–45 V output and a Digital Push Pull Gauge with a 20 kg range for related testing applications.

The IP Test Probes & Accessories are designed for professional use in laboratories, electrical testing, product safety testing, and quality verification applications.

Availability: In Stock

Watch Product Video

Download E-Book

The CK INSTO IP Test Probes & Accessories range provides different probe configurations for IP protection testing, including rigid sphere probes, a jointed test finger, and test rod probes.

The range includes IP1X Probe, IP2X Probe (Jointed Test Finger – Test Probe B), IP3X Probe, IP4X Probe, and IP2X Rigid Sphere Probe with a 12.5 mm sphere.

Additional accessories include a Low Voltage Panel featuring 0–45 V voltage output, digital voltage indication, ON/OFF switch, and banana connectors, along with a Digital Push Pull Gauge with a 20 kg range.

Included Products & Accessories

01. IP1X Probe – Rigid Test Sphere

  • Sphere Diameter: 50 mm
  • Handle: Ø10 × 100 mm
  • Guard: Ø45 × 4 mm
  • Standard: IS/IEC 60529, EN 60529

02. IP2X Probe – Jointed Test Finger (Test Probe B)

  • Knurled Finger Diameter: 12 mm
  • Knurled Finger Length: 80 mm
  • Baffle Plate Diameter: 50 mm
  • Baffle Thickness: 20 mm

03. IP3X Probe

  • Test Rod Diameter: 2.5 mm
  • Test Rod Length: 100 mm
  • Sphere Diameter: 35 mm
  • Handle Diameter: 10 mm
  • Handle Length: 100 mm

04. IP4X Probe

  • Test Rod Diameter: 1 mm
  • Test Rod Length: 100 mm
  • Sphere Diameter: 35 mm
  • Handle Diameter: 10 mm
  • Handle Length: 100 mm

05. IP2X Rigid Sphere Probe

  • Sphere Diameter: 12.5 mm
  • Handle: Ø10 × 100 mm

06. Low Voltage Panel

  • Voltage: 0–45 V
  • Digital Voltage Indicator
  • ON/OFF Switch
  • Two cables with banana connector
  • M.S. construction with fully powder-coated finish

07. Digital Push Pull Gauge

  • Type: Digital
  • Range: 20 kg

Brand: CK INSTO

IP1X Probe:
Sphere Ø50 mm, handle Ø10 × 100 mm, guard Ø45 × 4 mm

IP2X Jointed Test Finger:
Finger Ø12 mm × 80 mm, baffle plate Ø50 mm, baffle thickness 20 mm

IP3X Probe:
Test rod Ø2.5 mm × 100 mm, sphere Ø35 mm, handle Ø10 × 100 mm

IP4X Probe:
Test rod Ø1 mm × 100 mm, sphere Ø35 mm, handle Ø10 × 100 mm

IP2X Rigid Sphere Probe:
Sphere Ø12.5 mm, handle Ø10 × 100 mm

Low Voltage Panel:
0–45 V, digital voltage indicator, ON/OFF switch, two banana-connector cables, powder-coated M.S. construction

Push Pull Gauge:
Digital type, 20 kg range

Multiple IP Test Probes

The range includes IP1X, IP2X, IP3X, and IP4X probes for different IP protection testing applications.

Rigid & Flexible Probe Configurations

The collection includes rigid sphere probes as well as the jointed IP2X test finger, providing different probe configurations.

Defined Testing Dimensions

Each probe is supplied with defined sphere, finger, rod, handle, baffle, and guard dimensions according to the specified configuration.

IP2X Rigid Sphere Option

The 12.5 mm rigid sphere probe provides an additional IP2X probe configuration with a Ø10 × 100 mm handle.

Low Voltage Panel

The Low Voltage Panel provides 0–45 V, a digital voltage indicator, ON/OFF switch, and banana connectors.

Digital Push Pull Gauge

The digital Push Pull Gauge has a 20 kg range for specified testing applications.

Applicable Standards

The supplied content specifies standards for the IP1X probe including:

  • IS/IEC 60529
  • EN 60529

1. What is included in the CK INSTO IP Test Probes & Accessories range?

The range includes IP1X, IP2X, IP3X, IP4X, and IP2X rigid sphere probes, along with a Low Voltage Panel and Digital Push Pull Gauge.

2. What is the sphere diameter of the IP1X Probe?

The IP1X Probe has a 50 mm sphere diameter.

3. What is the diameter of the IP3X test rod?

The IP3X Probe has a 2.5 mm diameter test rod with a 100 mm length.

4. What is the diameter of the IP4X test rod?

The IP4X Probe has a 1 mm diameter test rod with a 100 mm length.

5. What accessories are available with the IP Test Probes?

The accessories include a 0–45 V Low Voltage Panel and a Digital Push Pull Gauge with a 20 kg range.
