IP4X Test Probe
The IP 4X Probe (Test Probe D) is a precision instrument designed to verify protection against access to hazardous parts and the ingress of solid foreign objects.
The CKINSTO-IP4X-01 features a 1.0 mm diameter test wire with a 100 mm length for IP4X protection verification and enclosure safety testing.
The probe is designed to simulate access by thin wires or small tools, supporting evaluation of protection against the entry of solid foreign objects.
With a 35 mm diameter sphere and defined handle configuration, it provides a practical testing solution for the specified IP4X application.
Its hardened stainless steel test wire is designed for consistent testing performance and is suitable for applications involving telecommunication equipment, electronics, and fine-mesh enclosures.
Availability: In Stock
Watch Product Video
Download E-Book
The CKINSTO-IP4X-01 IP4X Test Probe (Test Probe D) is designed to verify the IP4X degree of protection against access to hazardous parts and the ingress of solid foreign objects.

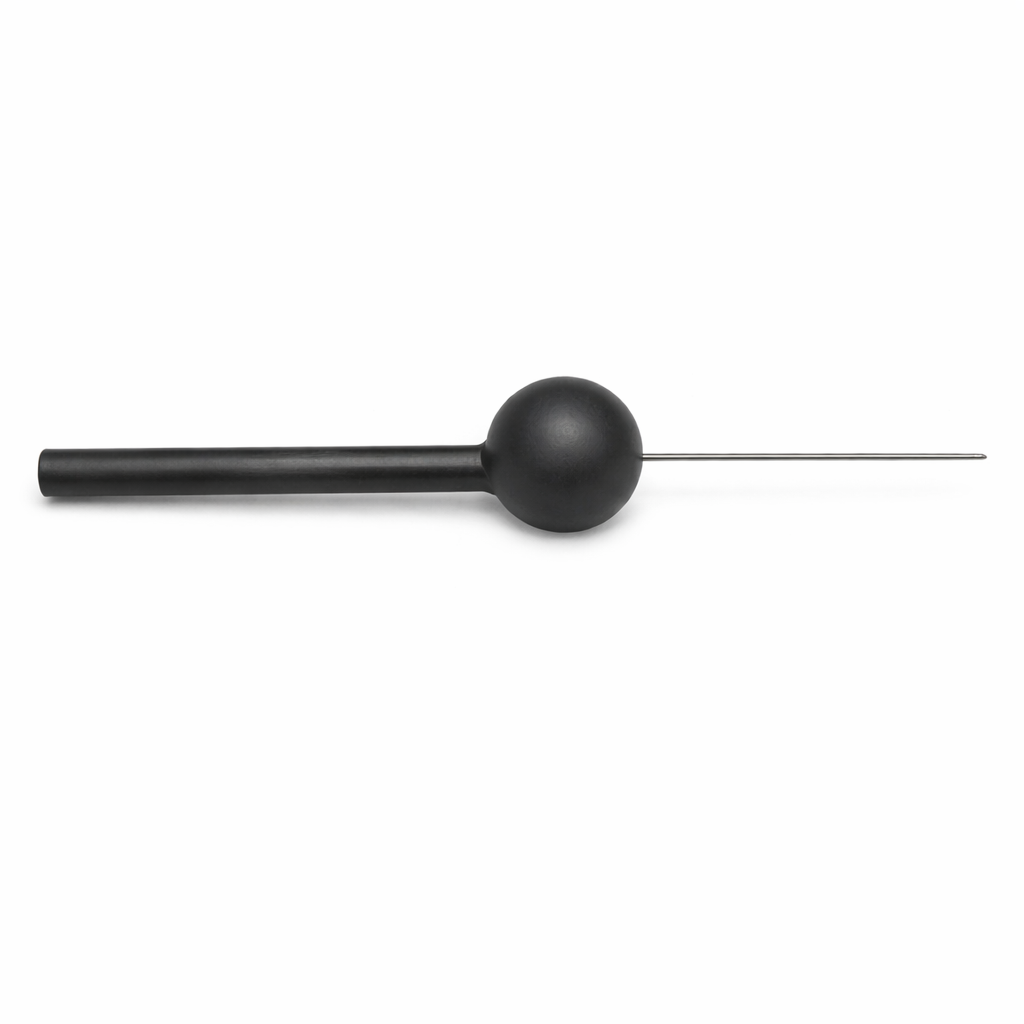

The probe features a 1.0 mm diameter × 100 mm long test wire, a 35 mm diameter sphere, and a 10 mm diameter × 100 mm long handle.
Its hardened stainless steel test wire provides a defined configuration for testing applications involving telecommunication equipment, electronics, and fine-mesh enclosures.
Product Name: IP 4X Probe
Model: CKINSTO-IP4X-01
Brand: CK INSTO
Test Probe: Test Probe D
Test Rod / Wire Diameter: 1.0 mm
Test Rod / Wire Length: 100 mm
Sphere Diameter: 35 mm
Handle Diameter: 10 mm
Handle Length: 100 mm
Construction: Hardened stainless steel test wire
Application: IP4X protection testing and enclosure safety verification
1.0 mm Test Wire
Features a 1.0 mm diameter test wire designed for IP4X protection verification and evaluation of access through enclosure openings.
Defined Test Wire Length
The test wire has a 100 mm length for the specified testing configuration.
35 mm Sphere
Includes a 35 mm diameter sphere as part of the probe configuration.
Hardened Stainless Steel Test Wire
The hardened stainless steel test wire is designed for consistent accuracy during testing.
Professional Handle Configuration
Features a 10 mm diameter × 100 mm long handle for the specified testing application.
IP4X Protection Testing
Designed to verify the IP4X degree of protection against access to hazardous parts and the ingress of solid foreign objects.
Wide Testing Applications
Suitable for testing telecommunication equipment, electronics, and fine-mesh enclosures.
Applicable Standards
The supplied content specifies the probe according to:
- IS/IEC 60529
- IEC 61032
- EN 60529
VARIANTS & CUSTOMIZATION
APPLICATION NOTE
VARIANTS & CUSTOMIZATION
APPLICATION NOTE
The CKINSTO-IP4X-01 IP4X Test Probe is used to verify protection against access to hazardous parts and the ingress of solid foreign objects. Its 1.0 mm test wire provides the defined configuration for IP4X protection verification.
The probe is suitable for telecommunication equipment, electronics, and fine-mesh enclosure testing, with a hardened stainless steel test wire designed for consistent testing applications.
